SEETEC ST-678AHY/O (with HDMI Output) 7 inch Video Camera Field Monitor 7" On-Camera Field HD Monitor

ST-678AHY/O is a 7 inch 16:9 LED field monitor with HDMI input and output, component input, and video input and output.
Note:678AHY (with HDMI input)
678AHY/O (with HDMI input & output)

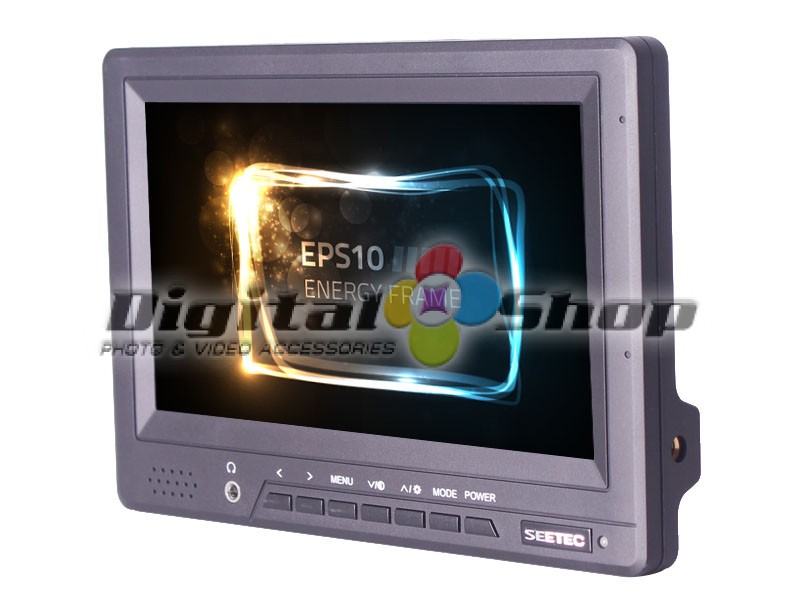

7 inch monitor with wide screen aspect ratio
Whether you're shooting still or video with your DSLR, sometimes you need a bigger screen than the tiny monitor built into your camera. The 7 inch screen gives directors and camera men a larger view finder, and the 16:9 aspect ratio complements HD resolutions.

Designed for the pro video market
Cameras, lenses, tripods and lights are all expensive - but your field monitor doesn't have to be.SEETEC is famous for manufacturing durable and high quality hardware, at a fraction of the cost of competitors. With the majority of DSLR cameras supporting HDMI output, it is likely your camera is compatible with the 678. The 678 is supplied with all the accessories you need - shoe mount adapter, sun hood, HDMI cable and remote control, saving you a great deal in accessories alone.

High contrast ratio
Professional camera crews and photographers require accurate color representation on their field monitor, and the 678 provides just that. The LED backlit, matte display has a 500:1 color contrast ratio so colors are rich and vibrant, and the matte display prevents any unnecessary glare or reflection.

Enhanced brightness, great outdoor performance

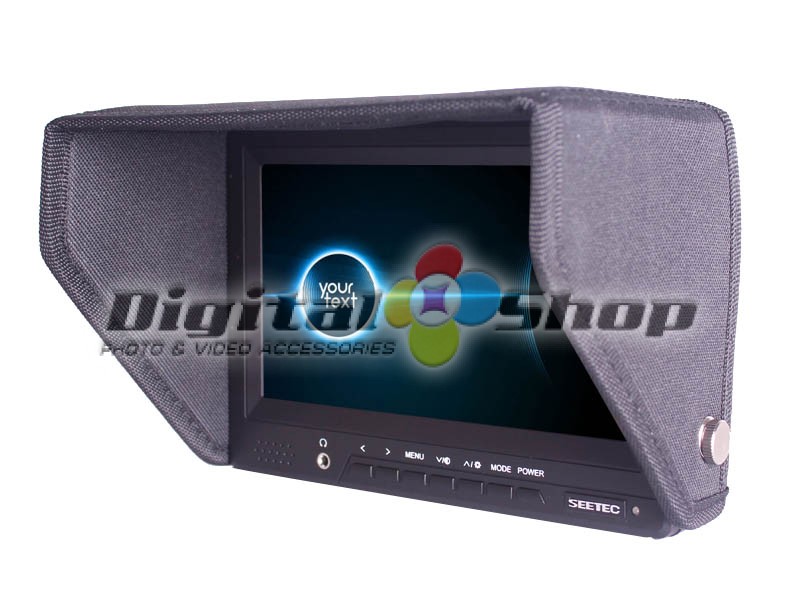

The enhanced 450 cd/㎡ backlight produces a crystal clear picture and shows colours vividly. Importantly, the enhanced brightness prevents the video content from looking 'washed out' when the monitor is used under sun light. The addition of the inclusive sun hood.

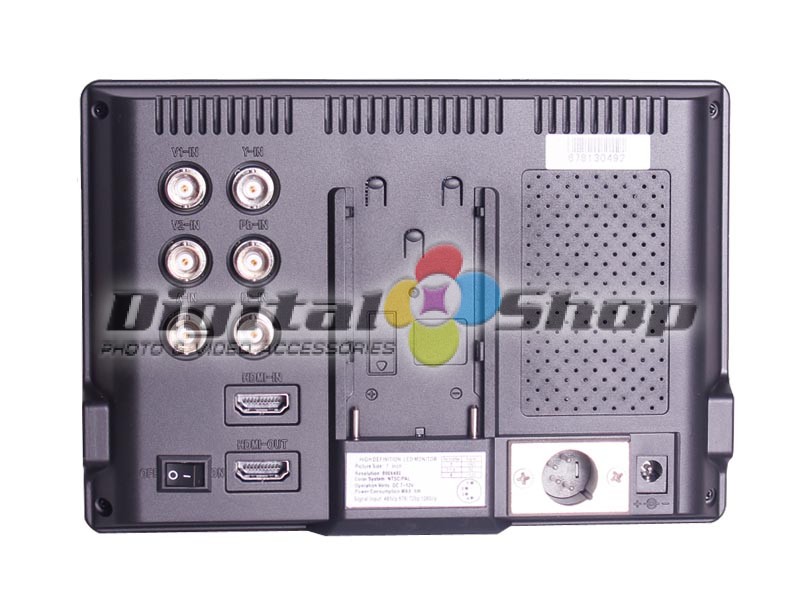

HDMI, and component and composite through BNC connectors
No matter which camera or AV equipment our customers use with the 678, there is a video input to suit all applications.
Most DSLR & Full HD Camcorder ship with an HDMI output, but larger production cameras output HD component and regular composite through BNC connectors.

Shoe mount adapter included
The 678 is truly a complete field monitor package - in the box you will also find a shoe mount adapter.
There are also a quarter inch Standard Whitworth threads on the 678; one on the bottom and two on the both side, so the monitor can easily be mounted on a tripod or camera rig.

Brand	SEETEC
Screen Type	7 inch TFT LCD
Resolution	800*480
Maximum Resolution	support 1920*1440
Dot Pitch	0.0635(W)*0.1905(H) mm
Screen Ratio	16:9
Brightness	450cd/m²
Contrast Ratio	500:1
Response Time	10ms
Viewing Angle	70°/70°(L/R) 50°/70°(U/D)
Input Voltage	DC 6~14V
Installation Style	Hot shoe mount
Power Consumption	≤8W
Backlight	LED
Input Signal	HDMI, YPbPr, Video, Audio
Working Temperature	-20~50°C
Storage Temperature	-30~65°C
Unit Size	188.6L131.2W39.0H(mm)
Unit Weight	450g
