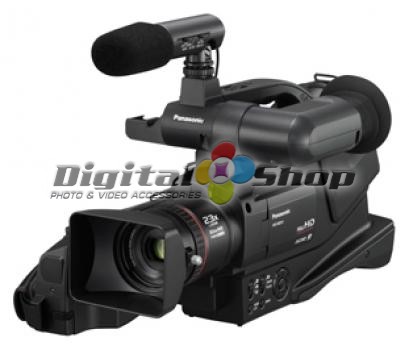

Shoulder-Type Design
External Stereo Microphone Included
Sub Rec. Button & Sub Zoom Lever
Manual Focus Ring
Large Eyecup
Tiltable Viewfinder
Long Life 5h 5min* Battery Included (approx.)
Built-in Zoom Microphone
Full-HD 1920 x 1080 Recording
HD/Standard Recording in AVCHD Format
Intelligent 23x Zoom
Touch Screen 2.7” LCD Monitor
35.8mm Wide-Angle*
iA (Intelligent Auto)
HYBRID O.I.S. (Optical Image Stabilizer)
O.I.S. Lock
Wind Noise Canceller
SD Memory Card Recording
Manual Functions for Creative Flexibility
Power Supply (Battery / AC Adapter) DC7.2V / 9.3V
Power Consumption Max. 5.0W (Recording)
Weight (w/o Battery) approx. 1800g
Dimension (W x H x D) 216 x 224 x 432 [mm]
Media SD/SDHC/SDXC Memory Card
On-Screen Display Language Please refer to "OSD" sheet
IMAGE SENSOR
Image Sensor 1/4.1" MOS
Total Pixels 3.32 megapixels
Effective Pixels
Motion Image 1.02 megapixels (Tele) - 1.44 megapixels (Wide) [4:3]
1.36 megapixels (Tele) - 1.92megapixels (Wide) [16:9]
Still Image 1.46 megapixels (Tele) - 2.08megapixels (Wide) [3:2]
1.36 megapixels (Tele) - 1.92megapixels (Wide) [16:9]
1.52 megapixels (Tele) - 2.16 megapixels (Wide) [4:3]
LENS SECTION
Lens Brand Panasonic Lens
F Value F1.8(WIDE) / 2.6(TELE)
Optical Zoom 16.8x
Focal Length 2.90-48.7mm
35mm Film camera Equivalent 35.8-716mm (16:9), 43.9-878mm (4:3) [Motion Image]
35.8-716mm (3:2), 35.8-716mm (16:9), 35.8-716mm (4:3) [Still Image]
Filter Diameter -
CAMERA SECTION
Standard Illumination 1400 lx
Minimum Illumination 4.0 lx (1/25 Low Light scene mode)
1 lx (Color Night View)
Image Stabilizer HYBRID O.I.S. [Optical Image Stabilizer] / O.I.S. Lock
Focus Auto / Manual
White Balance Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set
Shutter Speed
Motion Image [50i] Auto Slow Shutter ON : 1/25-1/8000
OFF : 1/50-1/8000
Still Image 1/2-1/2000, video flash: 1/2-1/500
Iris Auto / Manual
Zoom
Intelligent Zoom OFF 20x
Intelligent Zoom 23x
Enhanced Optical Zoom -
Digital Zoom 50x / 1200x (The maximum value of zoom magnification)
Backlight Compensation Yes
MONITOR
EVF Yes
Monitor (LCD) 2.7" Wide LCD ( 230,400 dots)
STILL IMAGE SECTION
Recording Format JPEG
Recording Image Size
Still Picture 2.8 megapixels (2064 x 1376) [3:2]
2.1 megapixels (1920x1080) [16:9]
2.9 megapixels (1952 x 1464), 0.3 megapixels (640 x 480) [4:3]
Simultaneous Recording 2.1 megapixels (1920x1080) [16:9], 0.3 megapixels (640 x 480) [4:3]
2.1 megapixels (1920 x 1080) [16:9]
Creating still picture from motion picture 0.2 megapixels (640 x 360) [16:9]
0.3 megapixels (640 x 480) [4:3]
Flash -
DPOF -
RECORDING SECTION
Signal System 1080 / 50i, 576 / 50i
Compression AVCHD ; MPEG4-AVC/H.264 (AVCHD standard compliant)
Recording / Playback Mode HA (17Mbps / VBR) , (1920 x 1080)
HG (13Mbps / VBR) , (1920 x 1080)
Recording / Playback HX (9Mbps / VBR) , (1920 x 1080)
HE (5Mbps / VBR) , (1920 x 1080)
SA (9Mbps / VBR) , (720 x 576)
SX (4.5Mbps / VBR) , (720 x 576)
Audio Compression Dolby Digital (2ch)
Microphone 2ch Stereo, Zoom Microphone
Speaker Dynamic type
Media Remaining Indication Yes
INTERFACES
AV Yes
HDMI Yes
Microphones (stereo mini) Yes
Headphone (stereo mini) Yes
USB 2.0 Hi-Speed
AV multi -
Video Component Yes
OTHERS
LED Video Light -
Accessory Shoe Yes (Cold)
STANDARD ACCESSORIES
AC Adaptor Yes
AC Cable Yes
DC Cable Yes
Rechargeable Battery Pack min. 2500 mAh / Lithium-Ion
AV multi Cable -
AV Cable Yes
Video Component Cable Yes
IR Remote -
Shoe adaptor -
USB Cable Yes
SD Memory Card -
Included Software HD Writer AE 2.5S
Lens hood -
External Stereo Michrophone Yes
Shoulder Strap Yes
Lens Cap Yes
Stylus Pen Yes
