Pull out the wide panel gently, excessive force may detach the wide panel.
The flash fires as a Modeling illuminator for a maximum of approx. 1.5 seconds.

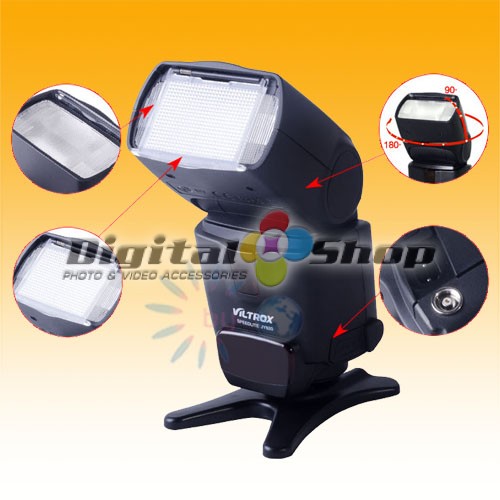

The flash head can turn 75 degree back and forward, 90 degree to the right, 180 degree to the left.
With external power source socket.
Support manual and stroboscopic flash.
Viltrox JY620 Wireless Flash Speedlite for Standard Hot-shoe Camera This Viltrox JY-620 speedlite is designed for any cameras with standard hot-shoe mount. With fashionable appearance and flexible rotated head. Specification: Model: Jueying Viltrox JY620 Guide Number: 40 ( at 50mm focal length, ISO 100 in meters) Flash Coverage: 50mm Exposure Control Type: stroboscopic flash , manual flash Effective Flash Range: 0.7-29mm (with EF 50mm f/1.4, ISO 100) Flash Exposure Compensation: manual, ±0.3 strops in 1/3- or 1/2- stop increments Flash Exposure Confirmation: flash exposure confirmation lamp lights Recycling Time: Normal flash 3.0 sec. (with 4 size-AA alkaline batteries, batteries are not included) Flash-ready Indicator: Red pilot lamp lights Transmission Method: Optical pulse Slave Flash Modes: S1, S2 External Power: Compact battery pack Canon CP-E4 (battery is not included) Transmission Range (Approx.): Reception angle ±40° horizontal, ±30° vertical Dimensions (WxHxD): Approx. 72X122X101mm/2.8X4.8X3.9'' Net Weight: Approx. 320g/11.3oz Suitable for: Standard Hot-shoe Cameras Sony and Minolta Camera Need an extra hot-shoe adapter (the adapter is not included) Note: This flash can not work on TTL mode. To avoid overheating and deteriorating the flash head, do not stroboscopic flash more than 10 times in succession. After 10 times, allow the flash to rest for at least 15 min. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow the flash to reset for at least 15 min. Stroboscopic flash is most effective with a highly reflective subject against a dark background. Using a tripod, a remote switch and external power source is recommended. A flash output of 1/1 or 1/2 cannot be set for stroboscopic flash. Package Includes: 1 × JY620 Flash Light 1 × Protecting Bag 1 × Mini Stand 1 × English Manual
l Type: airborne flash
l Flash index: 40 (50 mm focal length, ISO100 meters).
l Flash coverage: 50 mm
l Exposure control system: frequency light shining, manual flash
l Effective flash range: 0.7-29 metres
l Flash exposure compensation: in ± 3 between a third grade level or 1/2 level increment adjustment
l Flash exposure confirmed: flash exposure confirm light Charging time: 3.0 seconds (use AA size alkaline batteries)
l Flash ready indicator: red light
l Deputy flash modes: S1, S2
l External power source: compatible with CP-E4
l Size (wide ×high × deep) : 72 x 122 x 101 mm
l Weight: about 320 grams (only flash, not including the battery)
Suitable for:
This flash speedlight JY-620 is designed for all Camera (standard hot shoe interface camera) except Sony and Minolta
Package:
-JY-620Flash x1
-cloth bag x1
-Flash stand x1
-Warry card x1
-Use manual x1
