* Wireless TTL flash trigger
* Support flash exposure compensation via camera
* Remote/wireless manual power adjustment
* High speed sync up to 1/8000s (HSS; with compatible flash such as the Canon EX II series)
Several major improvement/enhancement of Pixel King has been made over the original Pixel Knight:
* Flash control via the Flash Control Menu (FCM; first introduce by Canon on Canon 40D & adopted on all EOS camera release later than 40D). This offers a very convenient and interactive way of controlling the remote flash.
* Now able to do second curtain sync (the Canon ST-E2 will does not allow second curtain sync).
* Allows manual grouping & power adjustment.
* Improved range, now up to 100m.
* Allow user download the latest firmware & update via mini USB port.
* Uses easily available AA batteries, same as the flash/speedlight. No more CR2!
Like the Pixel Knight, it does not support the Canon wireless protocol (i.e. it can not work as ST-E2/580EXII as the master to trigger 430EX flash in remote mode), but instead it works by "fooling" the remote flash that it is mounted on the camera hot-shoe. Vice-versa, the camera will work as if there a TTL flash mounted on the hotshoe.
The body physical design is similar to the Pixel Bishop. It uses the 2.4 GHz frequency, and Pixel rate it as having a working range of up to 100 meters.

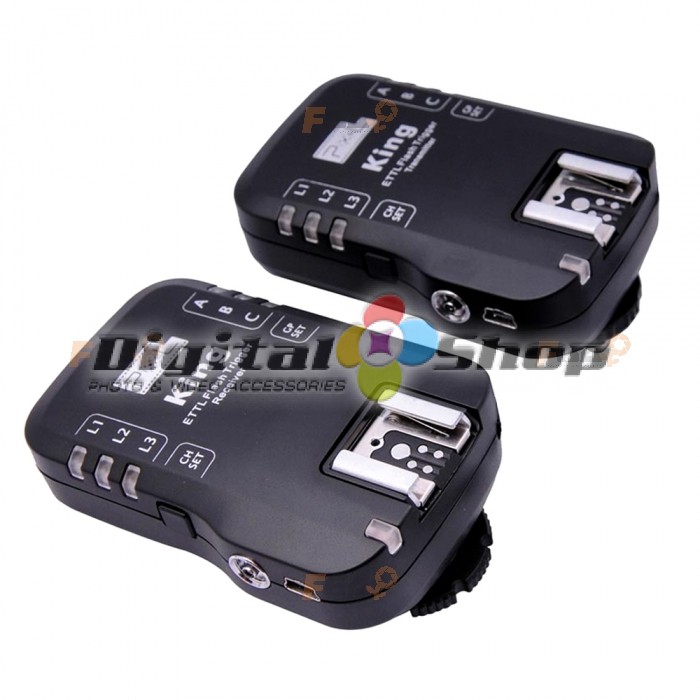

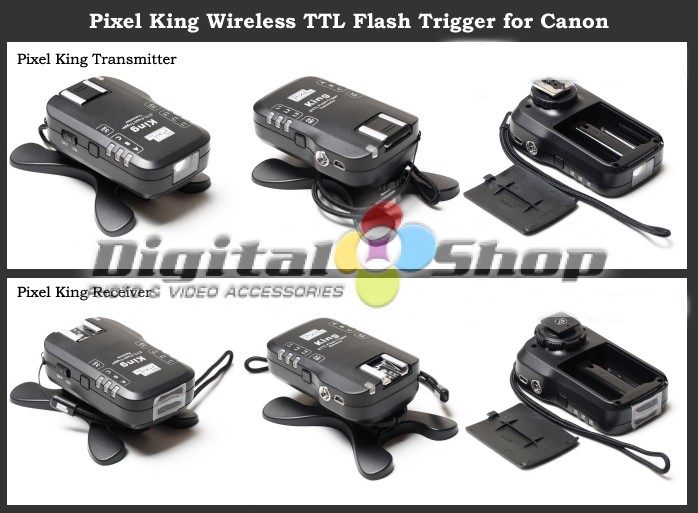

The Pixel King Transmitter provides 7 selectable channels and 3 different groups. For power, both the TX and RX use two AA-sized batteries. Both the TX and RX have an mini USB-socket to allow firmware updates, and also plug in external 5V power supply . Both the TX and RX have a hotshoe mount. The RX hot-shoe is for mounting remote flash/speedlight. However, the TX hot-shoe is NOT a TTL pass-through shoe, and can not be used to mount an additional flash/speedlight on top of it. Instead, Pixel has indicated that they plan introduce a optional control unit (tentatively named "N-ETTL") that can be mounted in the transmitter hot-shoe; likely to act as a Zone Controller.
* Support flash adjustment power via camera flash control menu (FCM; available in Canon EOS 450D, 500D, 550D, 600D, 40D, 50D, 60D, 5D, 5D Mark II, 7D, 1D Mark III, 1D Mark IV, 1Ds , 1Ds Mark II).
* Support flash control via camera menu, i.e. TTL Mode, Manual Mode, Flash exposure compensation. (FCM; available in Canon EOS 450D, 500D, 550D, 600D, 40D, 50D, 60D, 5D, 5D Mark II, 7D, 1D Mark III, 1D Mark IV, 1Ds , 1Ds Mark II).
* Support FEC (Flash exposure compensation).
* Support FEL (Flash Exposure Lock).
* Support camera group setting.

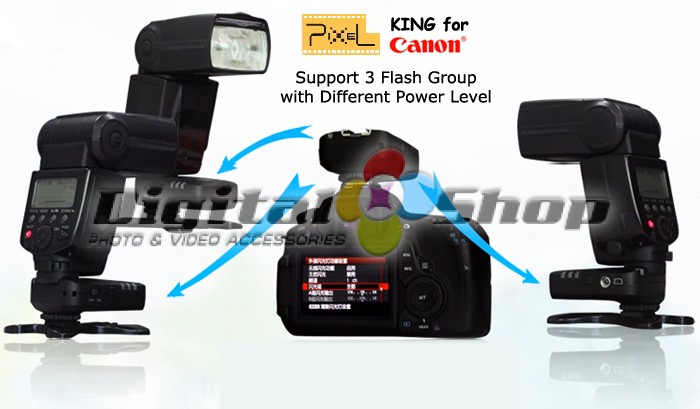

* Support 3 flashes output group with different power level (in MANUAL mode only).
* Support flash group setting on transmitter.
* Support 1st Curtain, 2nd Curtain and High Speed Sync (Camera & Flash Dependent).
* Support High Speed Sync for Studio and Outdoor Strobe.
* Support third party TTL flashes for High Speed Sync and TTL (Metz, Sigma, Sunpak, Nissin MK2).
* Support third party manual flash flashes for trigger (does not support high speed sync).
* Allow user to perform firmware upgrade.
* Support control of multiple receiver.
* Focusing assist light on the transmitter.
* When paired with with Canon EX II flash, flash power can be adjusted through camera menu (FCM).
* Do NOT support flashes using mixed modes (such as E-TTL and M together) via camera flash menu (FCM); user can still set manually on the flash.
* Do NOT support Multi mode.
* NOT compatible with Canon wireless Flash System.
* Do NOT support FEB (Flash Exposure Bracket).
* Do NOT support flash control via camera menu (FCM) for Canon EX series (works fine on EX II series).
* Receiver does NOT support camera shutter and flash trigger simultaneously.
* Transmitter's hotshoe is NOT for mounting flash/speedlight.

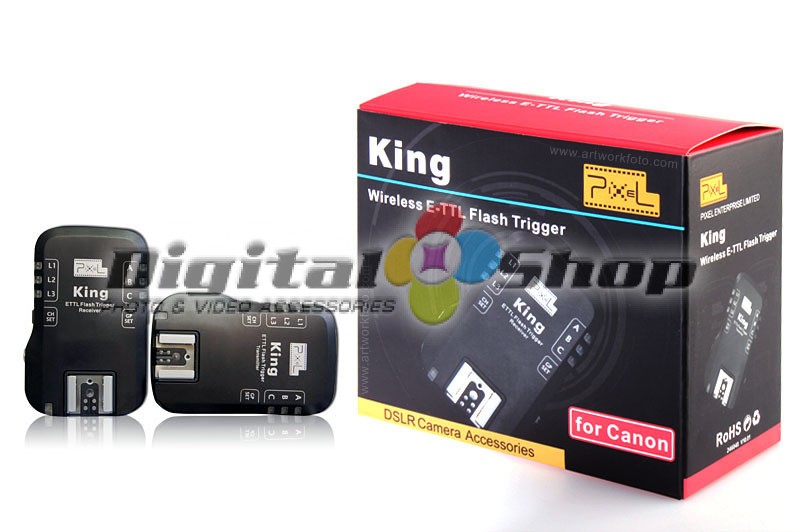

Pixel TTL Wireless Flash Trigger Set King for Canon;

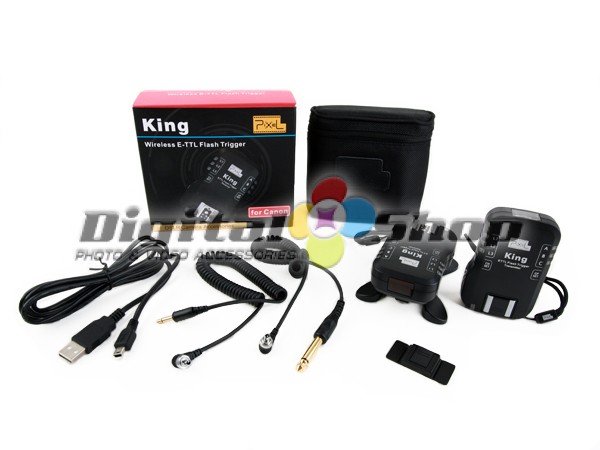

Package Includes:
Pixel King TX (Transmitter) x 1;
Pixel King RX (Receiver) x1;
User manual in English x1;
PC sync to 6.3mm cable x1;
PC sync to 3.5mm cable x1;
USB 2.0 Cable x1;
Hot shoe protective cover x2;
Receiver Holder (with adhesive on bottom) x1;
Universal Flash Holder (with standard 1/4” screw mount) x1;
Lanyard x2;

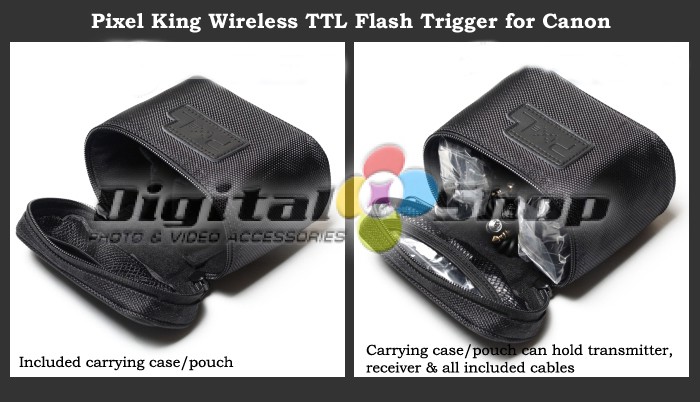

Carrying case x1;
Supports Canon E-TTL, TTL, and Manual mode;
Supports settings on flash zoom, focal length, shutter speed, ISO, FE Lock;
Supports shooting functions:
Exposure Value (EV);
Flash Exposure Compensation (FEC);
Flash Exposure Lock (FEL);
HSS: high speed sync of up to 1/8000 second (depending on sync speed limitation of the camera model);
1st and 2nd curtain flash;
Flash group control in M mode with flash power adjustments in each group;
Pixel King does not support Canon Wireless function (External flash function setting);
Compatible Camera models: Canon EOS 1100D, 1000D, 600D, 550D, 500D, 450D, 400D, 350D, 300D, 60D, 50D, 40D, 30D, 20D, 10D, 7D, 5D, 5D Mark II, 1Ds Mark III, 1Ds Mark II, 1D Mark IV, 1D Mark II, 1D; Rebel XTi, Rebel XT, Rebel XSi, Rebel XS, Rebel T3i, Rebel T3, Rebel T2i, Rebel T1i, Rebel, Kiss F, Kiss X50, Kiss X5, Kiss X4, Kiss X3, Kiss X2, Kiss X, Kiss N, Kiss;
Compatible Flash models:
Canon 580EXII, 580EX, 430EXII, 430EX, 320EX, 270EXII, 270EX, 220EX,
Metz dedicated Canon TTL flash,
Sigma dedicated Canon TTL flash,
Sunpak dedicated Canon TTL flash,
Nissin dedicated Canon TTL flash,
other studio and outdoor flash;
Compatible cameras with external flash control via camera menu: 600D, 550D, 500D, 450D, 60D, 50D, 40D, 7D, 5D Mark II, 1D Mark III, 1D Mark IV, IDs Mark III, Rebel T3i, Rebel T3, Kiss X5, Kiss X4, Kiss X3, Kiss X2;
Compatible flash units with flash output control via camera menu:
Canon 580EX II, 430EX II, 320EX, 270EXII;
Metz 48 AF, 50 AF, 58 AF;
Cameras not compatible with setting flash output via camera menu: Canon EOS 350D, 300D, 30D, 20D, 10D, 5D, 1D MARK II, 1D, (external flash function settings such as channel and group can only be set on the King transmitter);
Working radio frequency: 2.4 GHz;
Supports a maximum of 3 groups (7 combinations);
Channel: L1, L2, L3 (7 channel combinations);
Auto focus assist beam on the Transmitter unit;
PC-sync socket for connection with studio strobes and flashes;
USB socket for firmware upgrade;
Power input: AA 1.5V, also supports 1.2V rechargeable battery (for both transmitter and receiver);
Maximum distance: up to 100 meters;
Standby time:
Transmitter: 300 hours (AA 1.2V 2400mAH rechargeable battery);
Receiver: 200 hours (AA 1.2V 2400mAH rechargeable battery);
Dimension: 58 x 89 x 40mm (for both transmitter and receiver);
Weight: Transmitter: 117g, Receiver 113g (both with battery);
