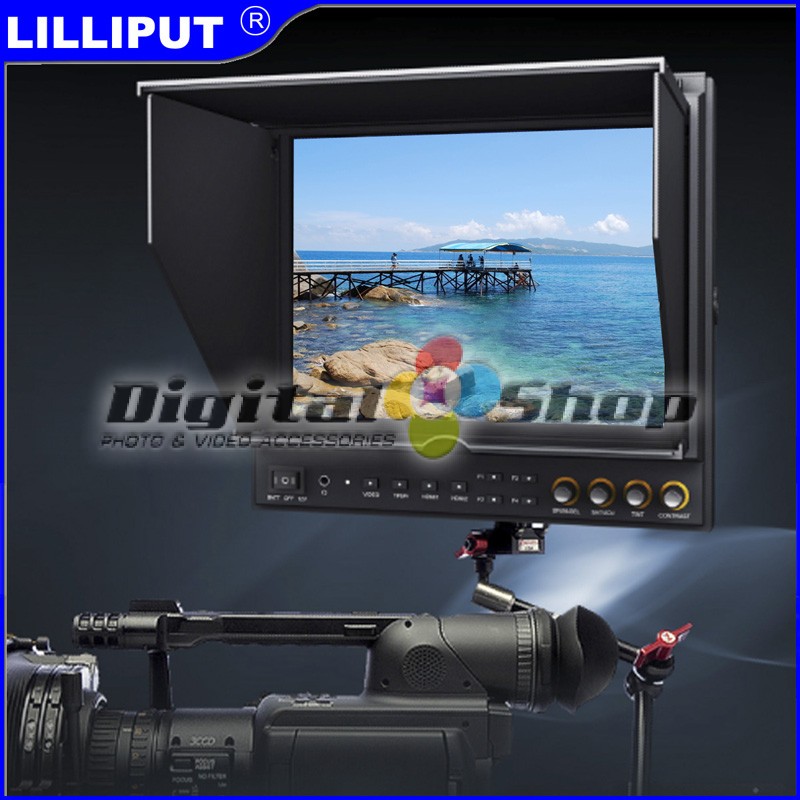

LILLIPUT 9.7'' 969 A/S 3G-SDI Color LCD Monitor
with 3G-SDI, HD-SDI, HDMI, YPbPr, Video, Audio, TALLY Input / 3G-SDI, HD-SDI, HDMI, YPbPr, Video, USB Output
(Peaking, False Color, Zebra, Brightness Histogram)
This is an application for DSLR Cameras and making movies. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.
The color monitor is the most suitable display for VGA, VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home also in other suitable position. With the bottom support bracket, you can view the monitor under different angles. Sure the LILLIPUT monitor will help you seizing much more clear world.
The professional monitor is designed for broadcasts and live events. Especially suit for directors, photographers, shutterbug etc. Tally interface will be available when monitor becomes view finder of camcorder. It has adjustable gimbal bracket and ear phone slot. And using DC power directly, support many battery plates. It's available for users viewing from different angles with the same visual effect.
Features:
- HDMI input and output function.
- With BNC interfaces, HDMI output, 3G-SDI and HD-SDI input / output.
- High resolution 1024×768.
- LED backlight display makes the device much thinner, more power saving.
- Video, YPbPr, Audio, 3G-SDI and HDMI inputs, to connect with HD camera.
- LCD 4:3 aspect ratio and high contrast 600:1.
- DC 7-24V wide range voltage.
- TALLY interface with indicating light.

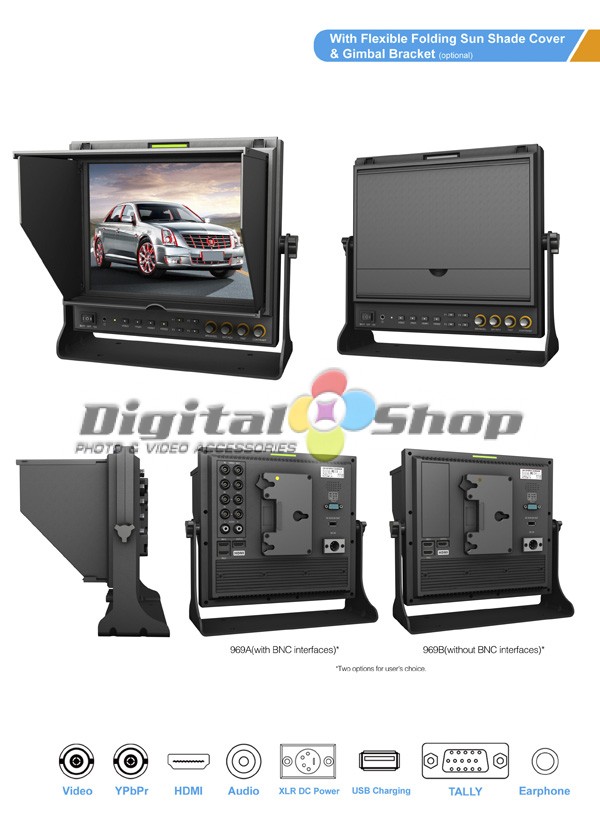

- With sun shade, best choice to use outdoor under sunlight.
- High brightness/ contrast and dizzy-proof monitor with sun shade, to see clearly under sunshine.
- 9.7'' monitor is light weight and easy to carry.
- 4 User-definable function buttons (F1, F2, F3, F4)
- Additional function of battery charging for iPhone / iPad / Android Phone / Pad via USB 2.0 interface.
- 178º horizontal and 178º vertical wide viewing angles.
- The monitor has standard 1/4'' thread hole, it can connect to your camera, magic arm, hot shoe stand....easily.
- Tally interface will be available when monitor becomes view finder for camcorder.
- TALLY interface with indicating light.
More new functions compared with Lilliput 665GL-70NP/HO/Y Monitor:

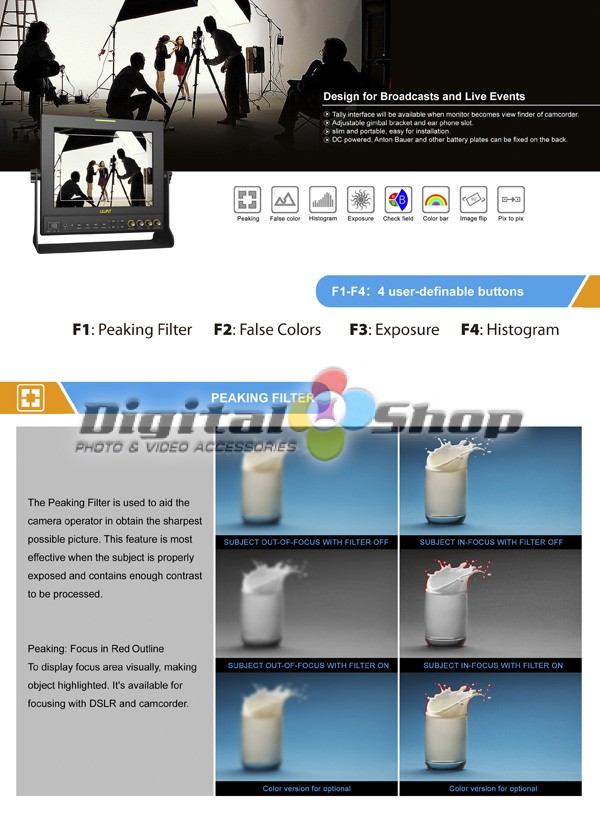

- The peaking Filter: The peaking filter is used to assist professionals to focus on the desired object when taking photos or videos. There will be RED lines around the object which is in focus.

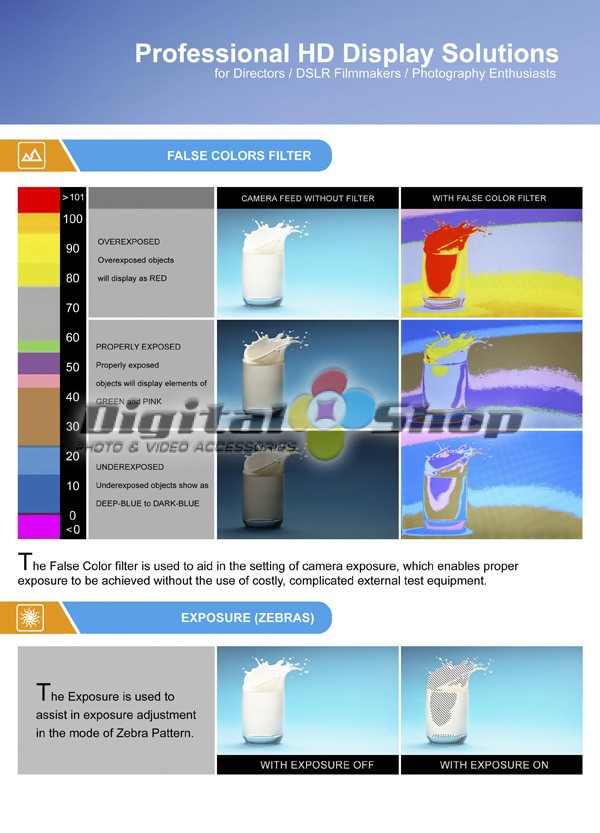

- False Color Filter: The false color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated test equipment.
- Zebra Exposure: There's a Zebra Pattern mode when assist in exposure adjustment.
- Brightness Histogram: The brightness histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark: Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
- Upgraded build-in chip.
- Used new spray -painting technology. More comfortable to hold.
Specification：
- Panel Size: 9.7" LED Backlit (IPS Panel)
- Resolution: 1024×768
- Contrast: 600:1
- Aspect Ratio: 4:3
- Brightness: 420cd/㎡
- Viewing Angle: 178°/ 178°(H/V)
- Input: Dual HDMI / 3G-SDI / YPbPr: 3 (BNC) / VIDEO: 1 / TALLY: 1 / AUDIO: 2 (L/R)
- Output: 3G-SDI / HDMI: 1 / YPbPr: 3 (BNC) / USB: 1 (5V) / VIDEO: 1
- Ear Phone Slot: 1 (built-in)
- Speaker: 1 (built-in)
- Support Battery: F970 / DU21 / QM91D (Both of them are not included)
- Battery Plate: V-mount (Optional) / Anton Bauer mount (Optional) / F970 (included) / QM91D (included) / DU21 (Optional) / LP-E6 (Optional)
- Power Consumption: ≤18W
- Input Voltage: DC 7-24V (XLR)
- Operating Temperature: -20℃~60℃
- Storage Temperature: -30℃~70℃
- Size With Sun Shade Closed: Approx. 246mm×224mm×31mm/9.7×8.8×1.2''
- Size With Sun Shade Open: Approx. 246mm×224mm×167.5mm/9.7×8.8×6.6''
- Weight: Approx. 1068g (37.7oz) & 1338g (47.2oz) (With cover)
Note:
- The battery adapter plate F970 is compatible of the following Sony DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330.
- The battery adapter plate QM91D is compatible of the following Sony DV: DSCR1 /F / S / MVCCD / E / HC 15E / HC1E / AE1u / DCRTRV828 / E / CCD-TRV116 / DCR-DVD / PS105K / 300K / 10P / 1E series.
- There are 3 bracket jacks in the left, right and bottom of the monitor.
- Functions of F1-F4 buttons can also be customized: aspect ratio, check field, freeze input, center maker, underscan, H/V delay, color bar, screen marker, zoom, camera, pixel-to-pixel, PIP, peaking, false color, exposure, histogram.
- Functions of R1-R4 buttons can also be customized: contrast, brightness, saturation, tint, volume, sharpness.
- Off, camera, X2, X4 and X8 options can be set when zoom function customized as shortcut key.
Suitable for:
- All cameras with HDMI port, SDI, Composite, Component
Package Includes:
- 1× 9.7'' LILLIPUT Color Monitor
- 2× Battery Plate: F-970 & QM91D
- 1× HDMI Cable
- 1× Switching Adapter
- 1× A Pack of Accessories
- 1× Bracket
- 1× Manual (English)
- 1× Original Packing
