HDSLR System » HD LCD Monitor » F&V Lighting F3 7" Field Monitor LCD Backlit HDMI High Resolution HDMI Version
F&V Lighting F3 7
F&V Lighting F3 7" Field Monitor LCD Backlit HDMI High Resolution HDMI Version
F&V
Out of stock
PORTABLE, HIGH RESOLUTION FIELD MONITOR
Description

Quick Overview

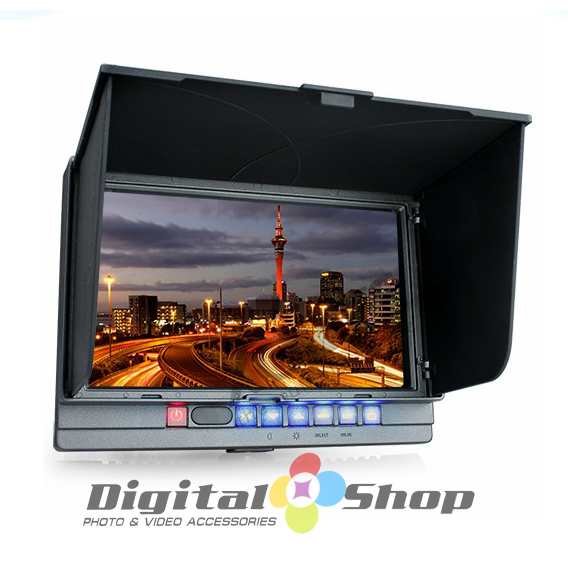

The F3 7" Monitor is lightweight, portable, and boasts an 1024x600px LED backlight display. The newly designed LCD screen is vibrant and produces a crisp image perfect for pulling focus. The new LCD screen also has a viewing angle of 170-degrees, giving you freedom of motion while using the monitor. A built-in sunscreen not only shades your screen under bright environments, but also it protects it during travel.


This monitor comes equiped with peaking, black & white, and horizontal/vertical image flip. The F3 monitor automatically detects whether the signal is NTSC or PAL, and you can choose whether to display in either a 16:9 or 4:3 aspect ratio.

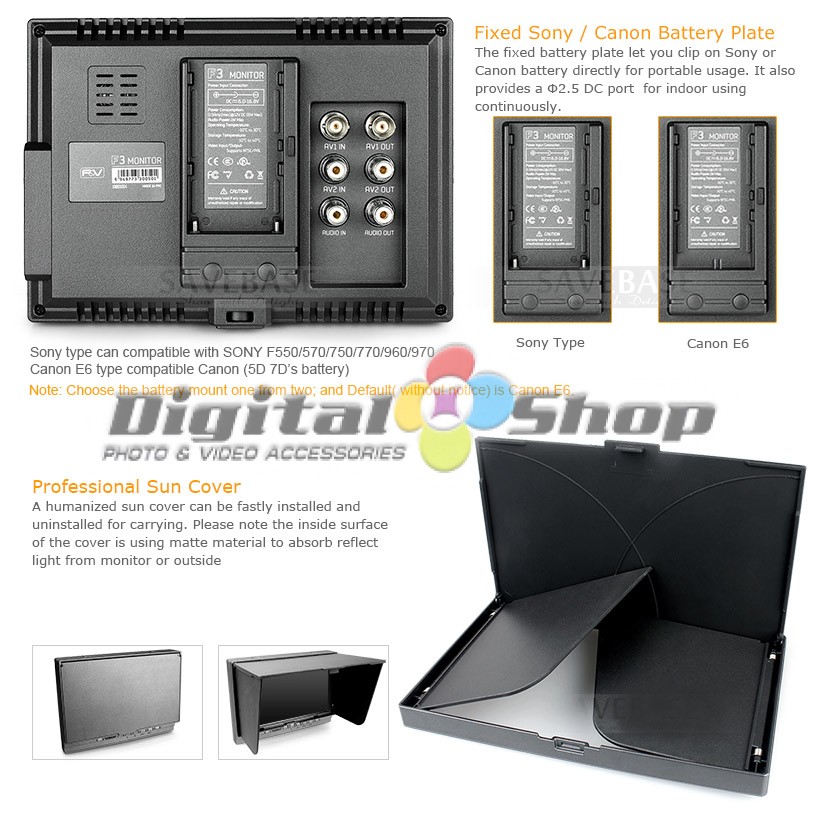

This HDMI + HD-SDI model features Composite RCA, Composite BNC, HDMI, and HD-SDI BNC connections.The monitor also comes with a built in Sony NP-F battery plate. The F3 monitor offers versatility at a price point you can't ignore.


Battery & AC Adapter SOLD SEPARATELY

The F3 7" Monitor is lightweight, portable, and boasts an 1024x600px LED backlight display. The newly designed LCD screen is vibrant and produces a crisp image perfect for pulling focus. The new LCD screen also has a viewing angle of 170-degrees, giving you freedom of motion while using the monitor. A built-in sunscreen not only shades your screen under bright environments, but also it protects it during travel.


This monitor comes equiped with peaking, black & white, and horizontal/vertical image flip. The F3 monitor automatically detects whether the signal is NTSC or PAL, and you can choose whether to display in either a 16:9 or 4:3 aspect ratio.


This HDMI + HD-SDI model features Composite RCA, Composite BNC, HDMI, and HD-SDI BNC connections.The monitor also comes with a built in Sony NP-F battery plate. The F3 monitor offers versatility at a price point you can't ignore.

Highlights
  • ›HDMI & HD-SDI Connectivity

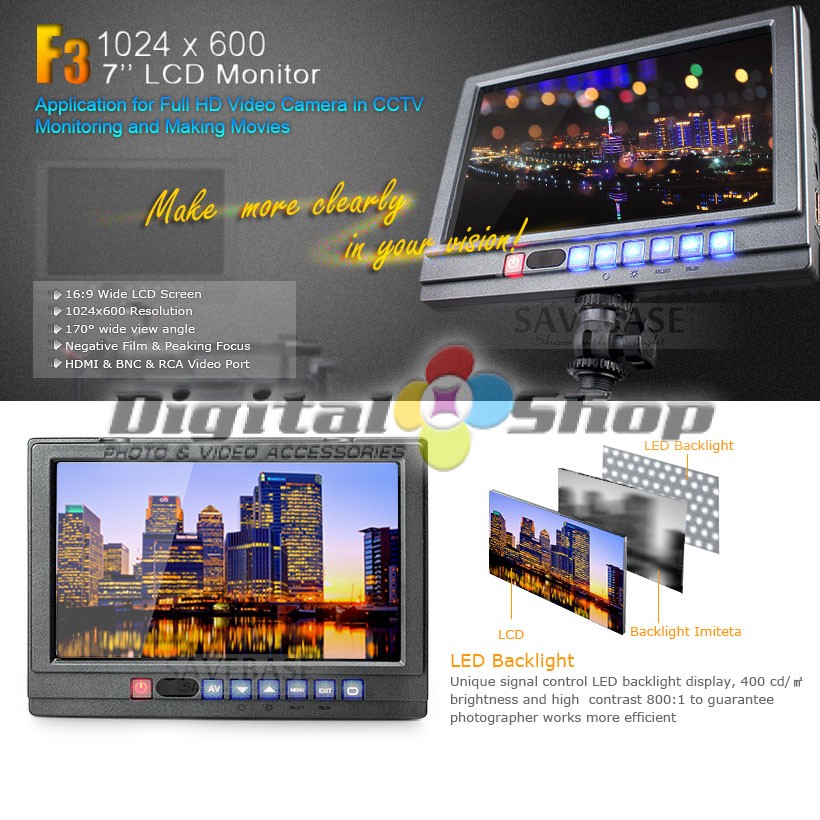

  • ›LED Backlight Display
  • ›Automatically detects NTSC or PAL
  • ›Selectable Aspect Ratio 16:9 or 4:3
  • ›1024 x 600 Pixels
  • ›View in Color or Black & White
  • ›Vertical Image Flip
  • ›Efficient Power Consumption
  • ›Wide Range of Operating Voltages
  • ›Focus Assist
  • ›Built in battery plate
Specs

Screen Size: 7.0” (diagonal)

Display Area: 153.6mm(H) x 90mm(V)

Aspect Ratio: 16:9/4:3 Selectable

Pixels: 1024(H) x 3(RGB) x 600(V)

Selectable Color Depth: 24-bit (16,777,216 colors)

Brightness: 400 cd/m²

Contrast Ratio: 800:1

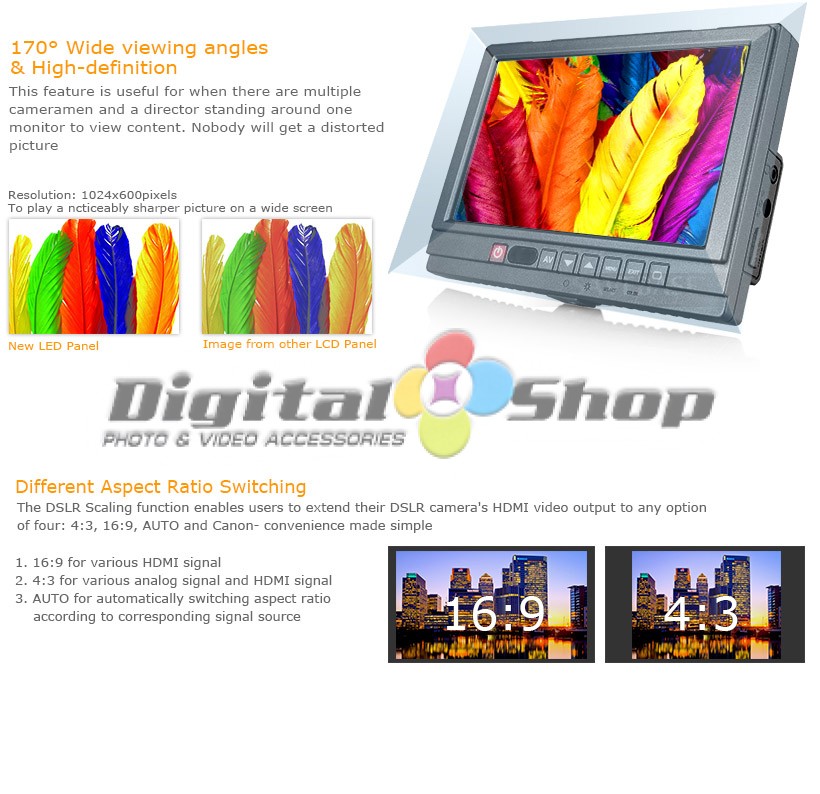

Viewing Angle: 170°

Dot Pitch: 0.15(H) x 0.15(V)

Compatible Input Formats: Composite – NTSC/PAL; HDMI – 480i/p, 576i/p, 720i/p, 1080i/p 50/60HZ

Operating Voltage: 5.8 – 16.8V DC

Power Consumption: 0.5Amp (Max) @ 12VDC

Audio Power: 1W max

Video Input/Output: HDMI / AV1 / AV2 / HD-SDI

HDMI Input: HDMI (Type A) Female

Audio Input/Output: RCA Female (8Greek Omega 05.svg)

Nominal Weight: 15 oz / 425 g (excluding battery)

Nominal Dimensions (L x W x H): 17.5 × 13 × 3.2 (cm)
Package Contents

(1) x F3 7" LCD Monitor - HDMI & HD-SDI

(1) x Snap-on Sunshade

(1) x HDMI Cable

(1) x Ball Head

(1) x User Manual

(1) x  Warranty card
